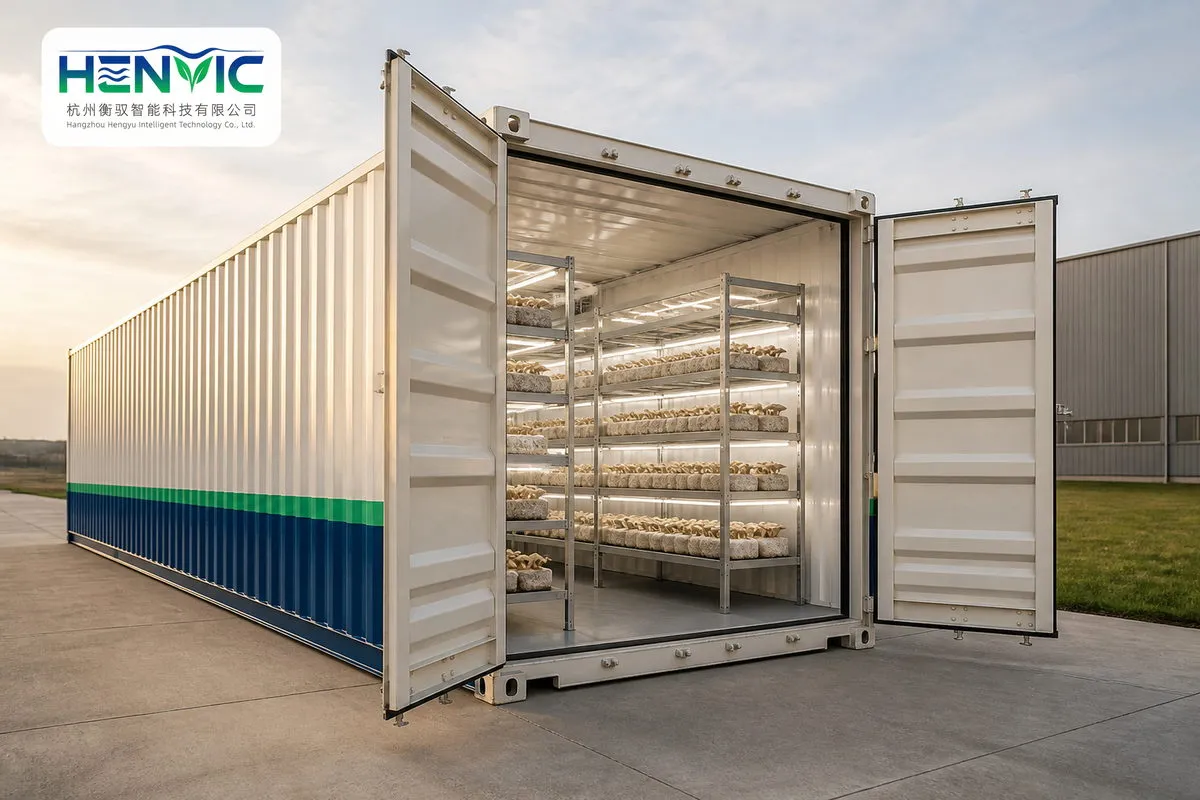

Oyster Mushroom Cultivation Container Smart Flagship

1. Product Overview

Oyster mushrooms are extremely sensitive to CO2; elevated levels cause elongated stipes and deformed caps, destroying market value. This model is built around strong ventilation and precise CO2 control, paired with complementary dehumidification and humidification for reliable, high-quality year-round production.

2. Key Advantages

• High-accuracy CO2 probe linked to fresh-air and recirculation fans, holding +/-100 ppm

• Dual-mode dehumidification and humidification for fast humidity response and small swings

• Linear floor drainage with a washdown surface for quick between-batch sanitisation

• Touch-panel control cabinet showing live curves with one-touch recipe switching

3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M5E
外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	50–65 m²  /  50-65 m2
层架配置 / Rack configuration	4–5 层不锈钢出菇架，配自动巡检接口  /  4-5 tier stainless racks with automatic inspection interface
温度控制范围 / Temperature range	12-22 ℃ (±0.5 ℃)  /  12-22 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-95% RH
CO₂ 浓度 / CO₂ concentration	500-1200 ppm
光照 / Lighting	0-500 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	25–35 天  /  25-35 days
装机功率 / Installed power	14–18 kW  /  14-18 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.30 W/(m²·K)  /  <= 0.30 W/(m2.K)
控制系统 / Control system	全自动控制 + 云端数据平台 + AI 配方自学习 + 手机 APP  /  Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app
主栽品种 / Primary species	平菇（Pleurotus ostreatus）  /  Oyster Mushroom (Pleurotus ostreatus)



 4. System Configuration

Standard configuration: Inverter cooling/dehumidification unit, fresh-air and recirculation fans, CO2 sensor and regulation module, ultrasonic humidifier, linear drainage with washdown flooring, stainless racks and a PLC touch-panel cabinet.

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-5 tier stainless racks with automatic inspection interface; control: Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app.

5. Suitable Species

Primary species: Oyster Mushroom (Pleurotus ostreatus). Cultivation method: bag or column cultivation. Oyster mushrooms grow fast and cycle densely; scheduling in 2-3 day batches balances labour and shipping.

6. Application Scenarios

Year-round production of staple mushrooms, fresh-mushroom supply bases near cities, and agricultural cooperatives. This is the Smart Flagship configuration; Unattended operation with full parameter traceability; suits multi-site remote management.

7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 96-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

 8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
