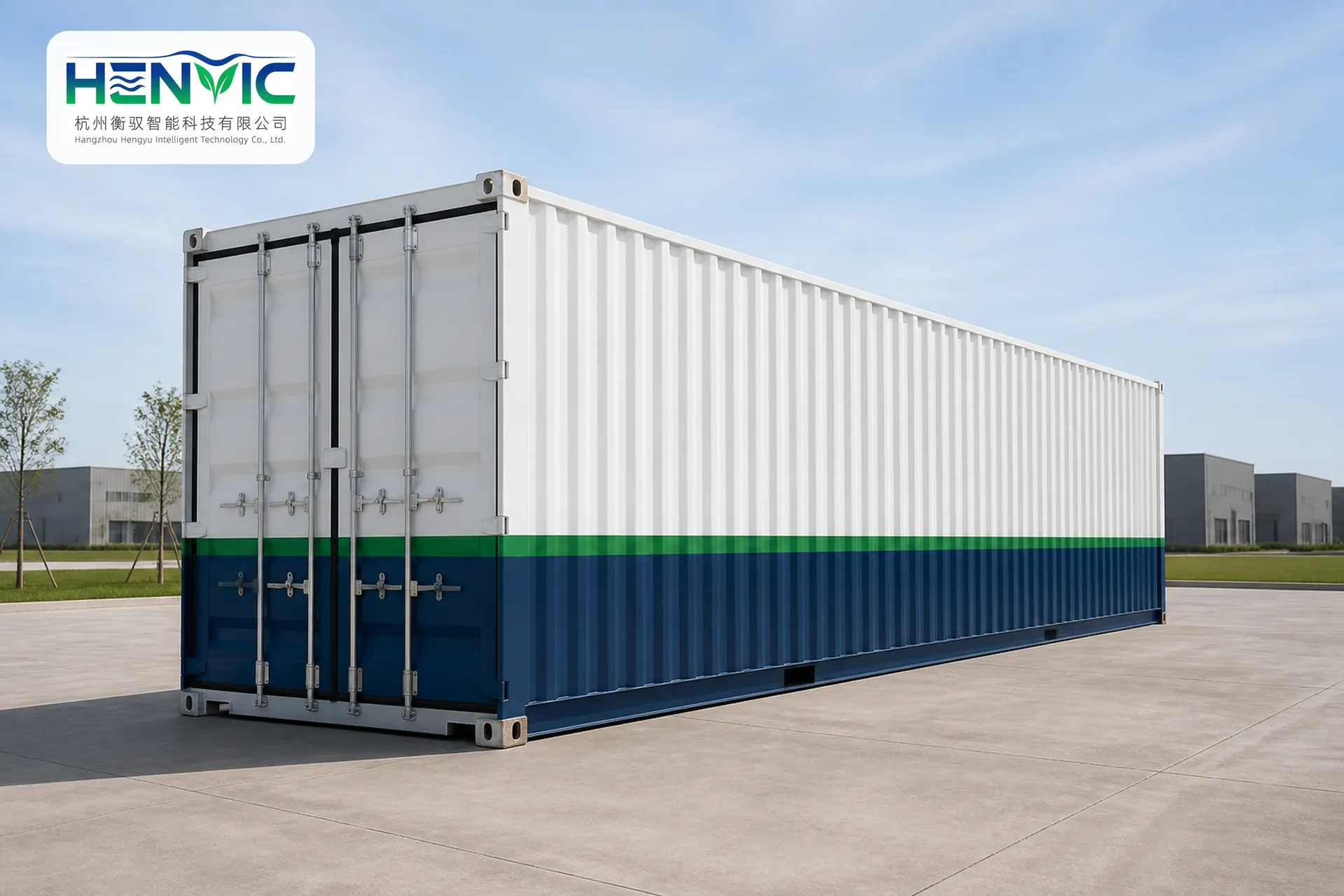

Ganoderma (medicinal mushroom) cultivation container
Product image: images/mushroom/HVC-M10.jpg (Integrated External Device Housing Unit)
I. Product Overview
The cultivation of medicinal fungi, such as Ganoderma lucidum, requires elevated temperatures, high humidity, and ample diffused light to ensure proper cap pigmentation and optimal spore powder quality. The HVC-M10 features an integrated design combining a main housing with an external equipment compartment; the cooling system, water tank, and power distribution unit are centrally housed within this external compartment, thereby maximizing the internal cultivation space and facilitating maintenance.
II. Core Competencies
● External equipment configuration: The cooling unit, water tank, and power distribution cabinet are all housed within the equipment compartment; the entire interior space of this compartment is dedicated to cultivation.
● Maintenance without disrupting production: The external equipment compartment can be opened for maintenance without interfering with the internal environment.
● Spectral coloring: the blue–green light ratio is adjustable, promoting uniform coloration of the mushroom cap and the accumulation of active ingredients.
● Clean collection: A spore powder collection module can be optionally installed to reduce spore dispersion.
III. Typical Technical Specifications
project | parameter |
Case dimensions | 12000 × 2438 × 2896 mm (40 feet) |
equipment bay | Approx. 1800 × 1200 × 2200 mm (Integrated) |
Temperature control range | 22–30 ℃（±1 ℃） |
relative humidity | 85%–95% RH |
beam | 0–1000 lux, adjustable spectrum |
Effective cultivation area | 45–55 m² |
installed power | 12–16 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration

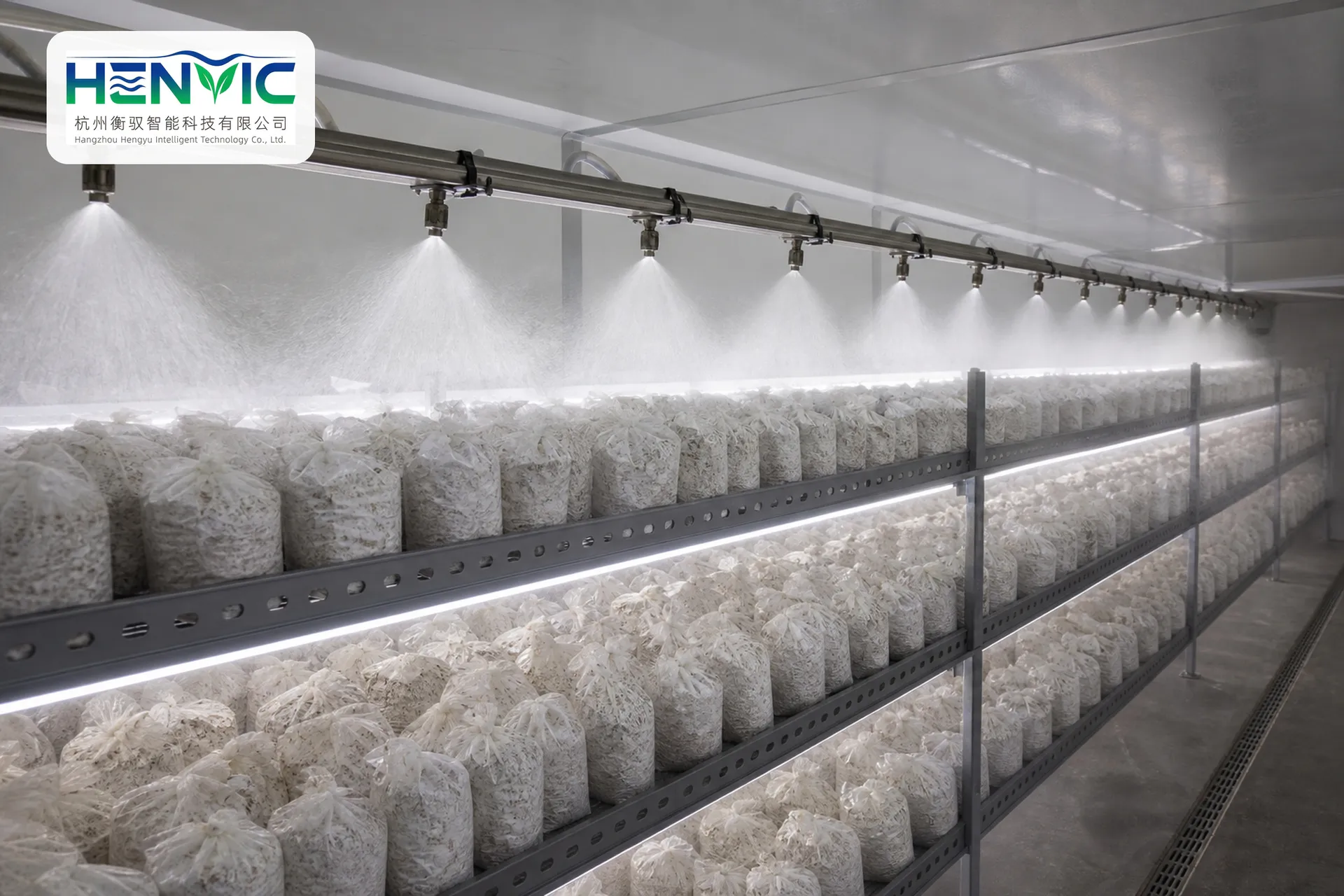

Integrated external equipment compartment (cooling unit, stainless steel water tank, power distribution cabinet), internal shelving system, atomization humidification system, adjustable-spectrum LED lighting, spore powder collection module (optional), and intelligent control cabinet.
V. Applicable Varieties
Medicinal fungi such as Ganoderma lucidum, Ganoderma applanatum, and Yunzhi, as well as functional fungi that require high-humidity, high-light cultivation conditions.
VI.适用场景
Standardized medicinal mushroom cultivation base; GAP-compliant traditional Chinese medicinal material development project; health supplement raw material supply chain.
VII. Delivery and Installation
The cabinet and equipment compartment are pre-assembled at the factory and undergo integrated commissioning; upon on-site hoisting and installation, power and water supply are connected, and the final commissioning is completed within 4–5 working days.
VIII. After-Sales Service
12-month overall warranty; on-site maintenance is provided for the units within the equipment compartment; the control system supports remote diagnostics and firmware upgrades.
